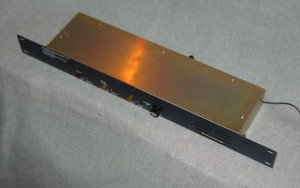

The Gorman Redlich Model CRW-S Weather Receiver is a highly sensitive and selective receiver for National Weather Service (NWS) transmissions. It’s equipped with a SAME decoder and a digital tone decoder that processes the 1050 Hz signal tone for automatic audible and visual alarm signals in the event of emergency situations. The Model CRW-S has rear terminals for wired remote control and a coaxial connector for external antennas. The unit also supports external equipment, monitoring and logging, and configuration via the rear-panel RS232 serial connectors and relay contacts.
The optional LED signboard displays incoming warnings addressed to your area in red for the duration of the alert or until a new alert is received. Watches are displayed in yellow and recieved test messages are displayed in green and are displayed for 15 minutes. This great feature provides visual alert information, perfect for installing in hallways, offices or where the radio is installed in a remote location. Remote installation is further enhanced with the optional remote control front panel which duplicates front panel functionality.
Stuff Happens… An unfortunate fact of life is that, often, the times when you need it most are the times when critical infrastructure goes down. Imagine a severe storm blowing in and your cell tower or internet connection fails or the power goes out. With no internet connection required and a standard 12VDC battery backup terminal, you stay protected with emergency information. (external battery power supply not included)
The 1050 Hz will close a relay in the Model CRW-S receiver. The 1050 Hz tone will also demute the receiver, activate a flashing LED and cause the NWS audio (600 ohm at 0 dbm) to be gated to a pair of rear terminals which can be used for remote alarm. Continuous audio is also available (600 ohm at 0 dbm) with another pair of rear terminals and may be used for recording.
The F.C.C. has authorized AM, FM and TV stations to rebroadcast weather transmissions originated by the NWS provided that commercials in connection with weather broadcast do not convey an endorsement by the government.
The CRW-S is easily configurable using the Microsoft Windows-compatible Gorman-Redlich Setup Software, although the units ship directly to you pre-programmed from the factory – so it is ready to install and start protecting your building occupants or audience.
Specifications
| Sensitivity: | .28 microvolts for 12 dB (S&N)/N.38 microvolts for 20 dB quieting
Double conversion receiver Adjacent channel (+25kHz down 70 dB) |
| Spurious Responses: | -60 dB max |
| Frequencies: | 162.40, 162.425, 162.45, 162.475, 162.50, 162.525, 162.55 Weather receiver is supplied with all of the (7) frequencies listed; switch selectable, frequency synthesized, and crystal controlled. |
| Temperature: | -10 degrees to +60 degrees C |
| Relay Closure: | By 1050 Hz tone signal remote switch or front panel switch. |
| Demuting: | By 1050 Hz tone remote switch or front panel switch. |
| Printed Circuit Boards: | Glass epoxy standard, MIL spec, plated thru holes |
| Power: | 110-130V, 60 Hz, 3 Watts |
| Rear Terminals: | Remote mute/demute activated by momentary contact closure.Remote relay reset activated by momentary contact closure.
Alarm audio (600 ohm, 1V P-P, 0 dBm) Continuous audio (600 ohm, 1V P-P, 0 dBm) Relay dry contacts 50 ohm antenna (F connector receptacle) 2 spare terminals for 12 volt battery backup (55 ma. on standby) |
| Shipping Weight: | 4 lbs. |
| Finish: | Front panel – black anodized, brushed aluminum Chassis – all metal. 1 3/4 inches rack space |
| ACCESSORIES | |
| Outdoor Antennas: | (1) Vertical quarter wave whip with mounting hardware(2) 6 element yagi. 10 dB gain, 17 dB F/B |
